BYD Seal U Design - Official Range and Energy Consumption (Combined)
WLTP Range (TEL*): 500 km 310.7 mi
WLTP Consumption (TEL*): 20.5 kWh/100 km 33 kWh/100 mi
Petrol/Gasoline equivalent: 2.31 l/100 km 102.2 MPGe
* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options
BYD Seal U Design - Battery
Battery Type: Lithium Iron Phosphate (LFP)
Battery Capacity Gross: 90 kWh
Battery Capacity Useable: 87 kWh
BYD Seal U Design - Dimensions and Weights
Body Type: SUV
Length: 4785 mm 188.39 in
Width: 1890 mm 74.41 in
Height: 1668 mm 65.67 in
Wheelbase: 2765 mm 108.86 in
Weight: 2147 kg 4733 lbs
Max Payload: 410 kg 904 lbs

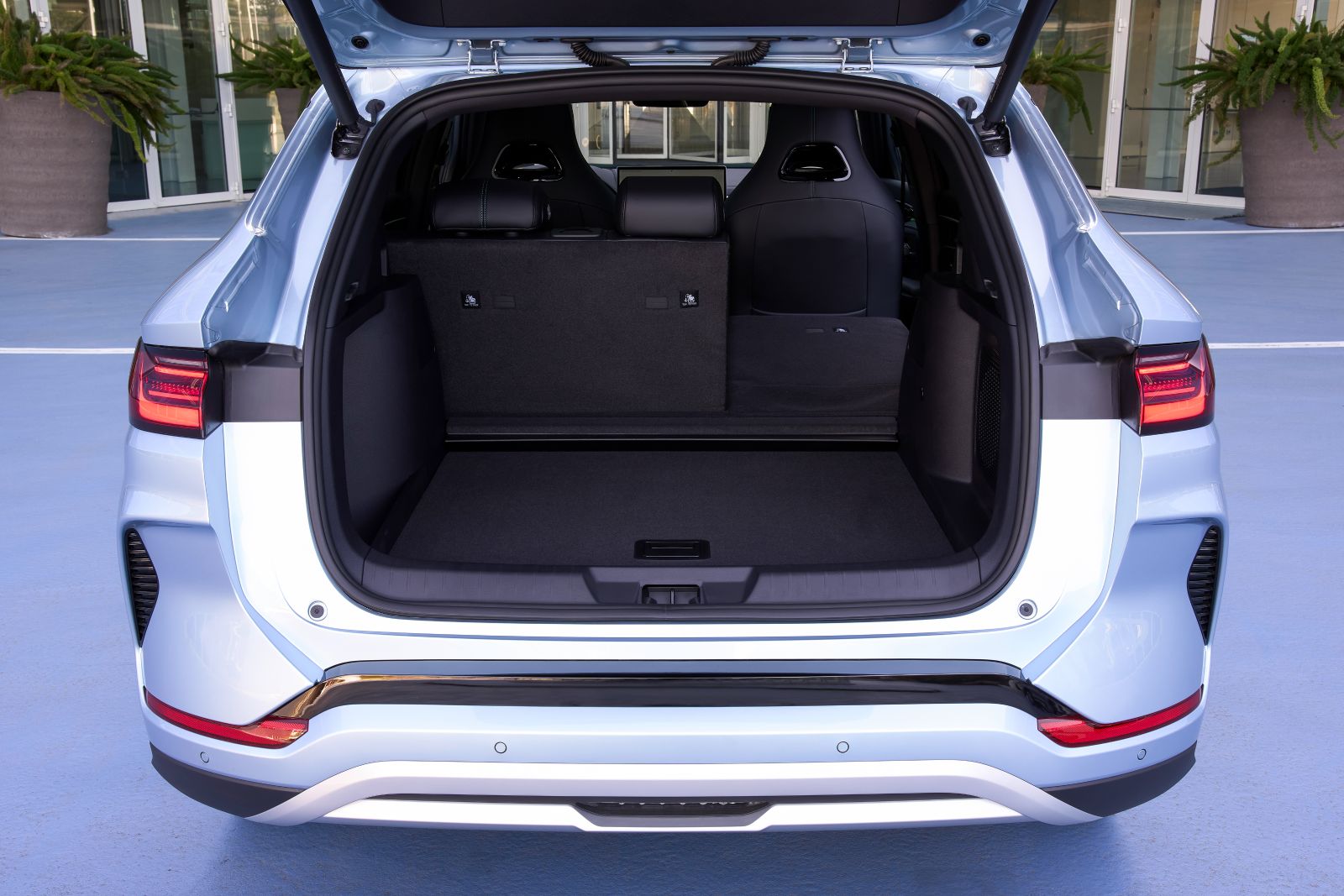

Trunk / Boot Space: 552 l 19.5 ft3
Trunk / Boot Space Max: 1440 l 50.9 ft3
Frunk Space:doesn't have a frunk
Max Roof Load: 75 kg 165 lbs
Max Trailer Load Braked: 1300 kg 2866 lbs
Max Trailer Load Unbraked: 750 kg 1653 lbs
Min Turning Circle (curb-curb): 11 m 36.1 ft
Tire Standard: 235/50 R19
Seats max.: 5
BYD Seal U Design - Charging
AC On-Board Charger Standard: 11 kW
DC Fast Charging: 140 kW

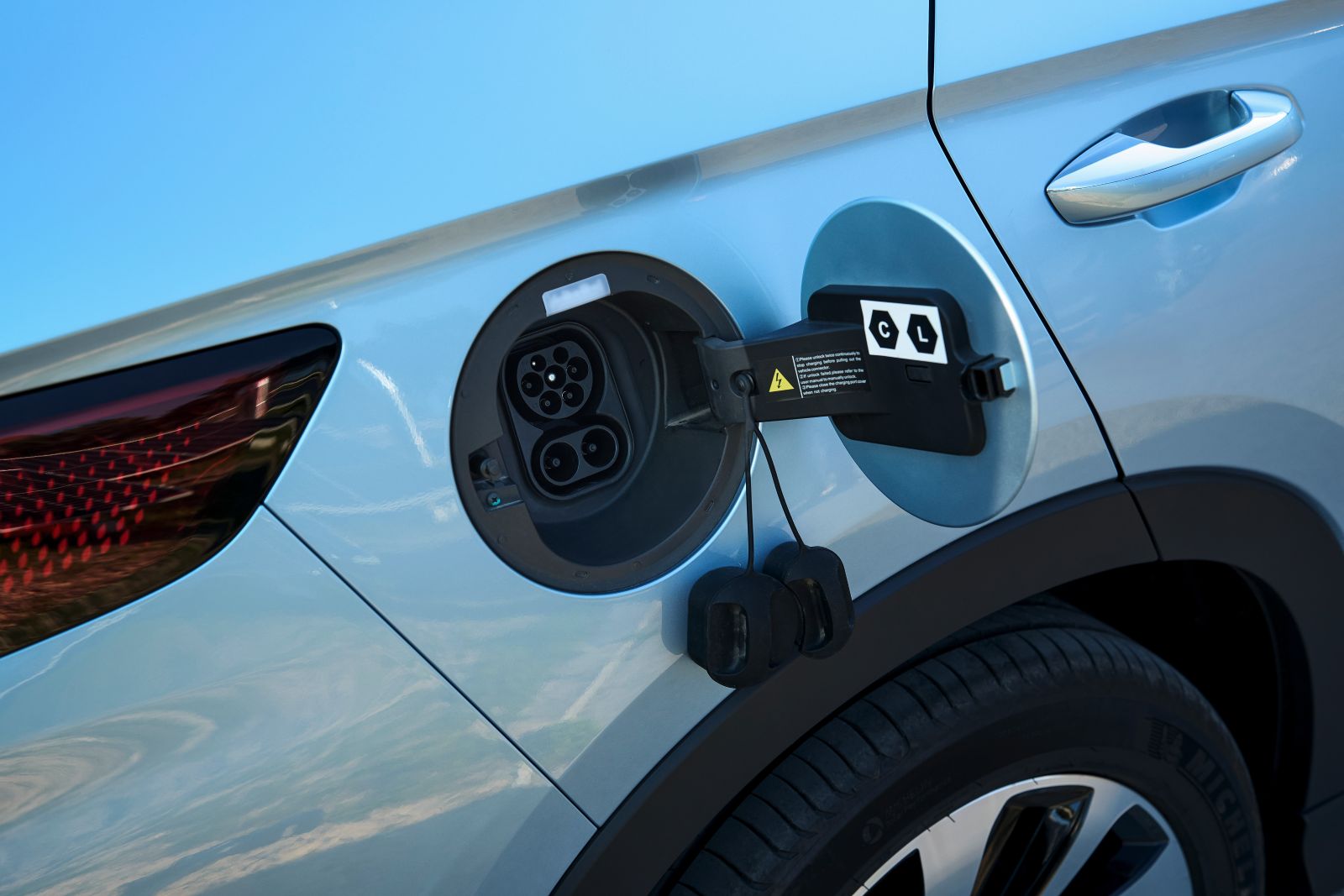

Charge Port: CCS
Charge Port Location: Rear Right
BYD Seal U Design - AC Charging Times (home, work, hotel)
Select State of Charge (SOC):
The maximum on-board charger power of the BYD Seal U Design is 11 kW. All figures in the table above are assumed approximate values under optimal conditions.
BYD Seal U Design - DC Fast Charging Times
Select State of Charge (SOC):
The maximum fast charging power of the BYD Seal U Design is 140 kW. All figures in the table above are assumed approximate values under optimal conditions.
The technical information on this page are used from official data provided by the car companies and figures measured by our editorial staff and/or other independent persons. For further details, please visit the manufacturer's website. If you think any of the information is wrong, please let us know.
