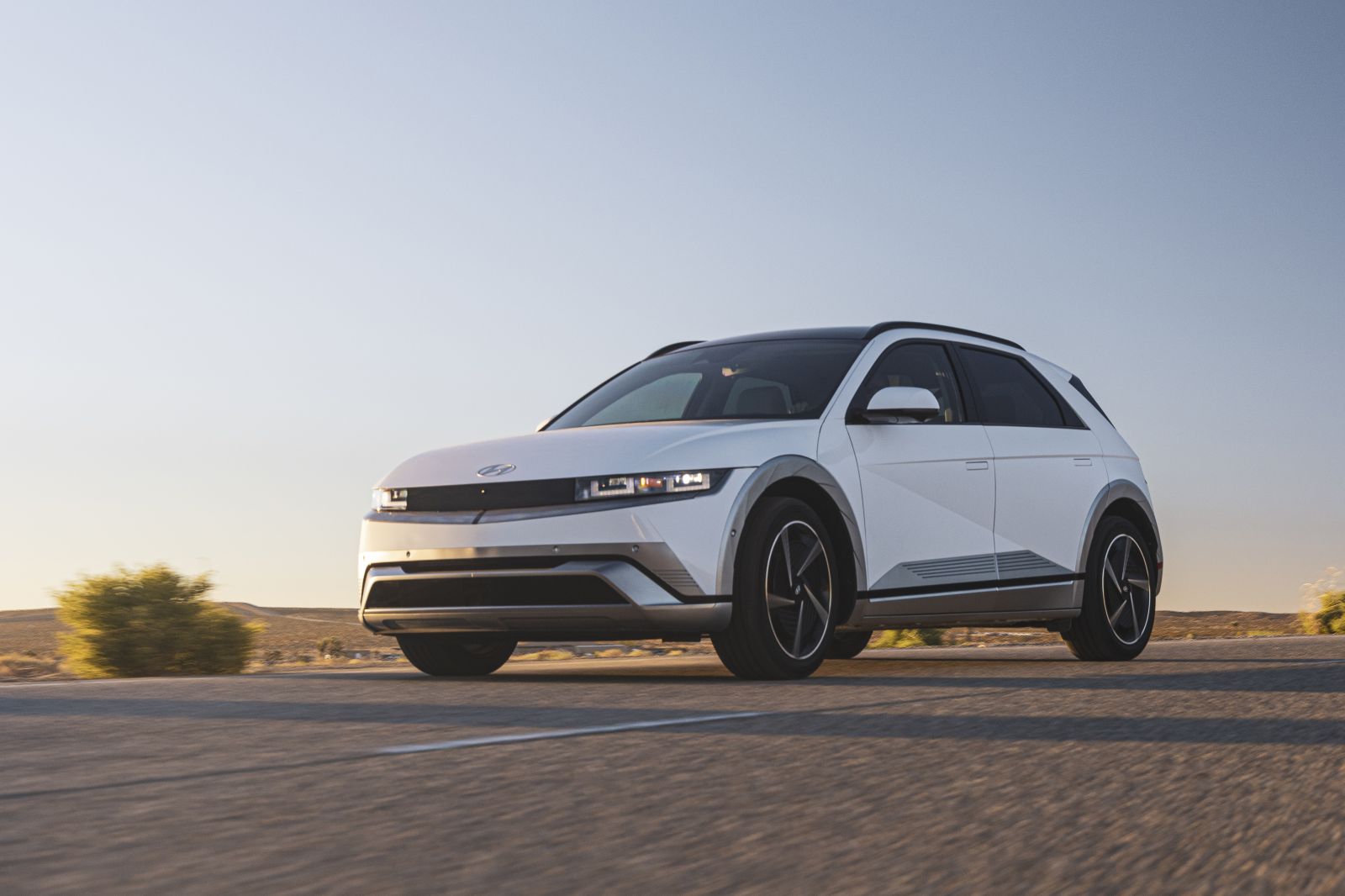

image of Hyundai Ioniq 5
My Comparison Table:

Hyundai Ioniq 5 63 kWh RWD Tech Specs

from: 2024

other variants:

Compare all variants side by side

Hyundai Ioniq 5 63 kWh RWD - Prices

Price in the United Kingdom of Great Britain and Northern Ireland (GBP)
On The Road Price
£39,900

Show prices of all variants

Price in Germany (EUR)
Preis inkl. MwSt.
43.900 €

Show prices of all variants

Battery Capacity Gross/Useable 63​/​59 kWh

Range (WLTP) 440 km 273.4 mi

Minimal Consumption (WLTP) 15.6 kWh/100 km 25.1 kWh/100 mi

Acceleration 0-100 km/h 8.5 s

Acceleration 0-60 mph 8.3 s

Hyundai Ioniq 5 63 kWh RWD - Performance Specs

  • Power: compare 125 kW (168 hp)
  • Torque: compare 350 Nm 258 lb-ft
  • Number of Engines: 1
  • Drive: compare Rear
  • Acceleration 0-60 mph: compare 8.3 s
  • Acceleration 0-100 km/h: compare 8.5 s
  • Acceleration 0-62 mph: 8.5 s
  • Top Speed: compare 185 km/h 115 mph

Hyundai Ioniq 5 63 kWh RWD - Official Range and Energy Consumption (Combined)

  • WLTP Range (TEL*): compare 440 km 273.4 mi
  • WLTP Consumption (TEL*): compare 15.6 kWh/100 km 25.1 kWh/100 mi
  • Petrol/Gasoline equivalent: 1.75 l/100 km 134.3 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

Hyundai Ioniq 5 63 kWh RWD - Battery

  • Battery Type: Lithium-ion Polymer
  • Battery Capacity Gross: compare 63 kWh
  • Battery Capacity Useable: compare 59 kWh

Hyundai Ioniq 5 63 kWh RWD - Dimensions and Weights

  • Body Type: SUV
  • Length: compare 4655 mm 183.27 in
  • Width: compare 1890 mm 74.41 in
  • Height: compare 1605 mm 63.19 in
  • Wheelbase: 3000 mm 118.11 in
  • Weight: compare 1955 kg 4310 lbs
  • Max Payload: 590 kg 1301 lbs
  • Trunk / Boot Space: compare 520 l 18.4 ft3
  • Trunk / Boot Space Max: 1580 l 55.8 ft3
  • Frunk Space: compare57 l 2 ft3
  • Max Roof Load: 80 kg 176 lbs
  • Max Tow Hitch Load: 100 kg 220 lbs
  • Max Trailer Load Braked: 750 kg 1653 lbs
  • Max Trailer Load Unbraked: 750 kg 1653 lbs
  • Ground Clearance: compare 160 mm 6.3 in
  • Min Turning Circle (curb-curb): compare 11.98 m 39.3 ft
  • Tire Standard: 235/55 R19
  • Seats max.: 5

Hyundai Ioniq 5 63 kWh RWD - Charging

  • AC On-Board Charger Standard: 11 kW
  • DC Fast Charging: compare 180 kW
  • DC Charge Port: CCS
  • Charge Port Location: Rear Right

Hyundai Ioniq 5 63 kWh RWD - AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the Hyundai Ioniq 5 63 kWh RWD is 11 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Hyundai Ioniq 5 63 kWh RWD - DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the Hyundai Ioniq 5 63 kWh RWD is 180 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Hyundai Ioniq 5 63 kWh RWD - Others

  • Platform: E-GMP
  • Dedicated EV Platform: Yes
