Volkswagen ID.5 GTX Tech Specs

from: 2021

other variants:

Compare all variants side by side

Volkswagen ID.5 GTX - Prices

Price in the United Kingdom of Great Britain and Northern Ireland (GBP)
On The Road Price
£55,705

Show prices of all variants

Price in Germany (EUR)
Preis inkl. MwSt.
56.455 €

Show prices of all variants

Battery Capacity Gross/Useable 82​/​77 kWh

Range (WLTP) 486 km 302 mi

Minimal Consumption (WLTP) 18.1 kWh/100 km 29.1 kWh/100 mi

Acceleration 0-100 km/h 6.3 s

Acceleration 0-60 mph 6.1 s

Volkswagen ID.5 GTX - Performance Specs

  • Power: 220 kW (295 hp)
  • Torque: 460 Nm 339 lb-ft
  • Number of Engines: 2
  • Drive: 4x4
  • Acceleration 0-60 mph: 6.1 s
  • Acceleration 0-100 km/h: 6.3 s
  • Acceleration 0-62 mph: 6.3 s
  • Acceleration 0-160 km/h: 15 s
  • Acceleration 0-100 mph: 15 s
  • Top Speed: 180 km/h 112 mph
  • Quarter Mile (402.3 m): 13.7 s

Volkswagen ID.5 GTX - Official Range and Energy Consumption (Combined)

  • WLTP Range (TEL*): 486 km 302 mi
  • WLTP Consumption (TEL*): 18.1 kWh/100 km 29.1 kWh/100 mi
  • Petrol/Gasoline equivalent: 2.04 l/100 km 115.7 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

Volkswagen ID.5 GTX - Battery

  • Battery Type: Lithium Nickel Manganese Cobalt (NMC)
  • Battery Capacity Gross: 82 kWh
  • Battery Capacity Useable: 77 kWh

Volkswagen ID.5 GTX - Dimensions and Weights

  • Body Type: SUV
  • Length: 4599 mm 181.06 in
  • Width: 1852 mm 72.91 in
  • Height: 1598 mm 62.91 in
  • Wheelbase: 2776 mm 109.29 in
  • Weight: 2270 kg 5004 lbs
  • Max Payload: 555 kg 1224 lbs
  • Trunk / Boot Space: 549 l 19.4 ft3
  • Trunk / Boot Space Max: 1561 l 55.1 ft3
  • Frunk Space:doesn't have a frunk
  • Max Roof Load: 75 kg 165 lbs
  • Max Tow Hitch Load: 75 kg 165 lbs
  • Max Trailer Load Braked: 1200 kg 2646 lbs
  • Max Trailer Load Unbraked: 750 kg 1653 lbs
  • Ground Clearance: 163 mm 6.42 in
  • Min Turning Circle (curb-curb): 11.6 m 38.1 ft
  • Tire Standard: 235/50 R20
  • Rear Tire Standard: 255/45 R20
  • Seats max.: 5

Volkswagen ID.5 GTX - Charging

  • AC On-Board Charger Standard: 11 kW
  • DC Fast Charging: 170 kW
  • Charge Port: CCS
  • Charge Port Location: Rear Right

Volkswagen ID.5 GTX - AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the Volkswagen ID.5 GTX is 11 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Volkswagen ID.5 GTX - DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the Volkswagen ID.5 GTX is 170 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Volkswagen ID.5 GTX - Others

  • Platform: MEB
  • Dedicated EV Platform: Yes
  • Drag Coefficient Cd: 0.27

Volkswagen ID.5 - Interior And Exterior Photos

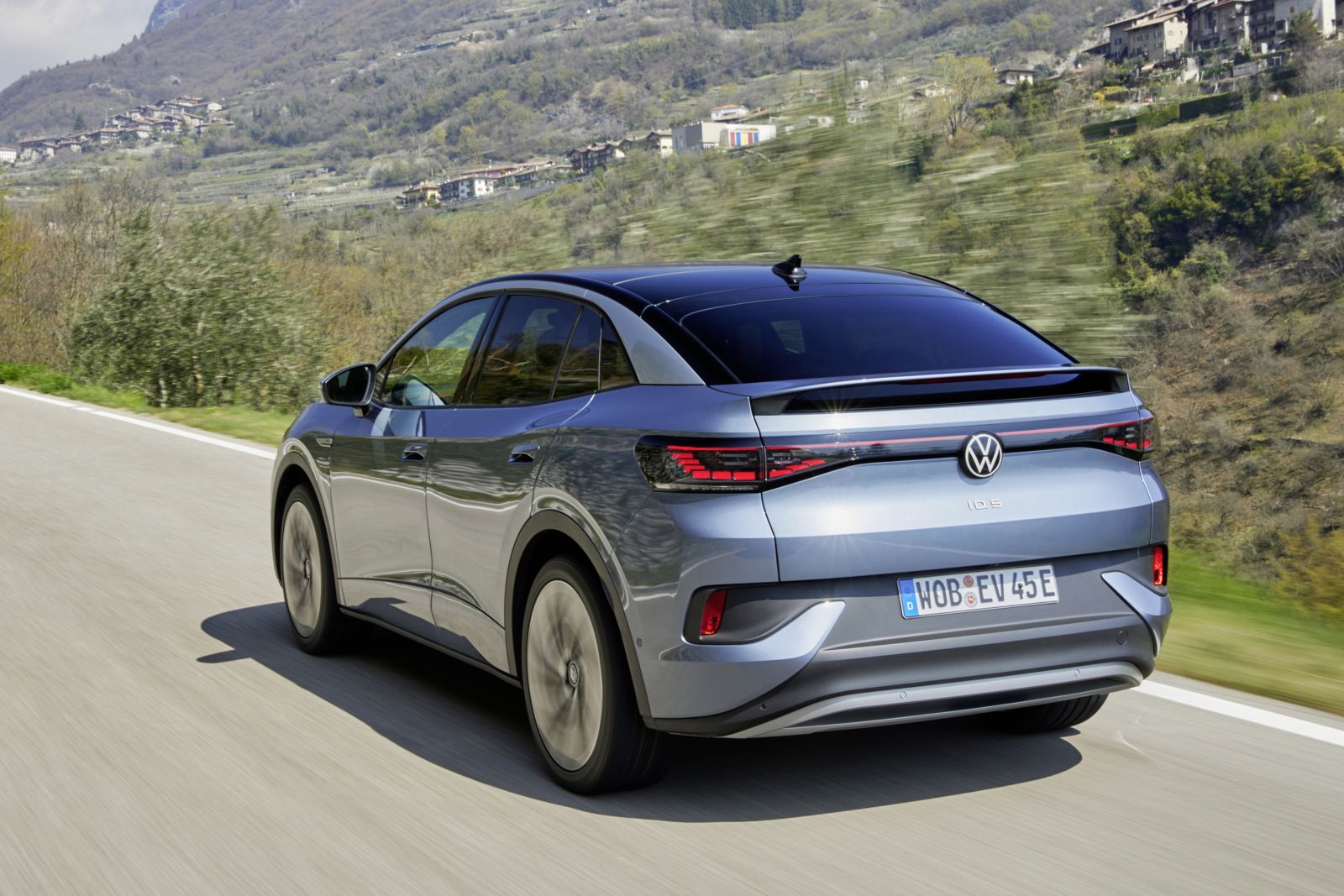

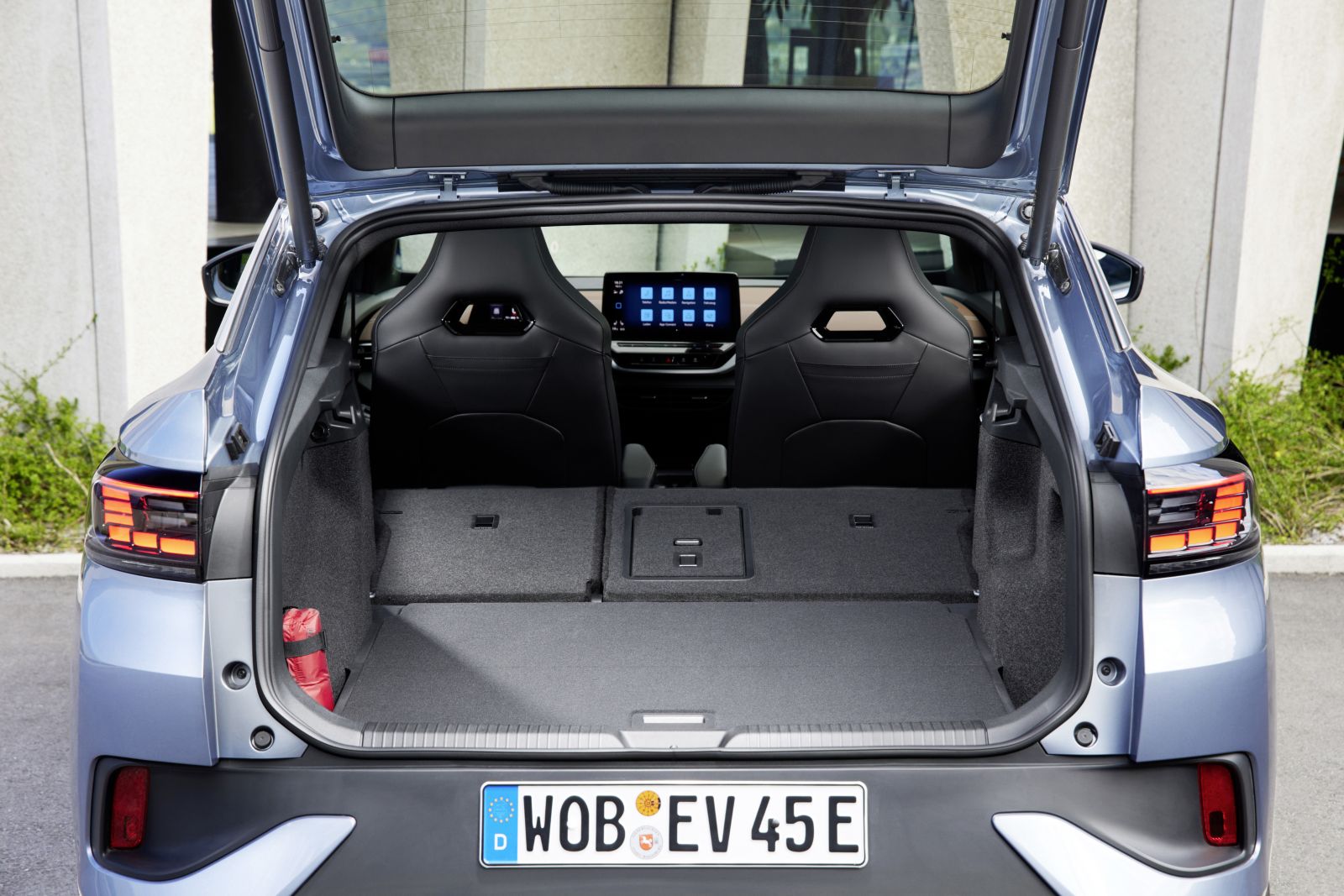

Volkswagen ID.5 - GTX Volkswagen ID.5 - GTX rear Volkswagen ID.5 - GTX Volkswagen ID.5 - GTX Volkswagen ID.5 - Image 5 from the photo gallery Volkswagen ID.5 - rear Volkswagen ID.5 - Image 7 from the photo gallery Volkswagen ID.5 - front Volkswagen ID.5 - rear Volkswagen ID.5 - GTX interior dashboard Volkswagen ID.5 - steering wheel Volkswagen ID.5 - interior dashboard Volkswagen ID.5 - interior front seats Volkswagen ID.5 - trunk / boot Volkswagen ID.5 - trunk / boot Volkswagen ID.5 - headlight

Volkswagen ID.5 - Safety - Crash Tests

IIHS: This is a crash test of the Volkswagen ID.4, which shares the same platform (MEB) as the Volkswagen ID.5.

The technical information on this page are used from official data provided by the car companies and figures measured by our editorial staff and/or other independent persons. For further details, please visit the manufacturer's website.
If you think any of the information is wrong, please let us know.
