Volvo EX30 Single Motor - Official Range and Energy Consumption (Combined)
WLTP Range (TEL*): 344 km 213.8 mi
WLTP Consumption (TEL*): 16.7 kWh/100 km 26.9 kWh/100 mi
Petrol/Gasoline equivalent: 1.88 l/100 km 125.4 MPGe
* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options
Volvo EX30 Single Motor - Battery
Battery Type: Lithium Iron Phosphate (LFP)
Battery Capacity Gross: 51 kWh
Battery Capacity Useable: 49 kWh
Volvo EX30 Single Motor - Dimensions and Weights
Body Type: SUV
Length: 4233 mm 166.65 in
Width: 1837 mm 72.32 in
Height: 1549 mm 60.98 in
Wheelbase: 2650 mm 104.33 in
Weight: 1830 kg 4034 lbs
Trunk / Boot Space: 318 l 11.2 ft3
Trunk / Boot Space Max: 904 l 31.9 ft3
Frunk Space:7 l 0.2 ft3
Max Roof Load: 75 kg 165 lbs
Max Trailer Load Braked: 1000 kg 2205 lbs
Ground Clearance: 177 mm 6.97 in
Min Turning Circle (curb-curb): 10.6 m 34.8 ft
Seats max.: 5
Volvo EX30 Single Motor - Charging
AC On-Board Charger Standard: 11 kW
DC Fast Charging: 134 kW
Charge Port: CCS
Charge Port Location: Rear Left
Volvo EX30 Single Motor - AC Charging Times (home, work, hotel)
Select State of Charge (SOC):
The maximum on-board charger power of the Volvo EX30 Single Motor is 11 kW. All figures in the table above are assumed approximate values under optimal conditions.
Volvo EX30 Single Motor - DC Fast Charging Times
Select State of Charge (SOC):
The maximum fast charging power of the Volvo EX30 Single Motor is 134 kW. All figures in the table above are assumed approximate values under optimal conditions.
Volvo EX30 Single Motor - Others
Platform: SEA2
Dedicated EV Platform: Yes
Drag Coefficient Cd: 0.28

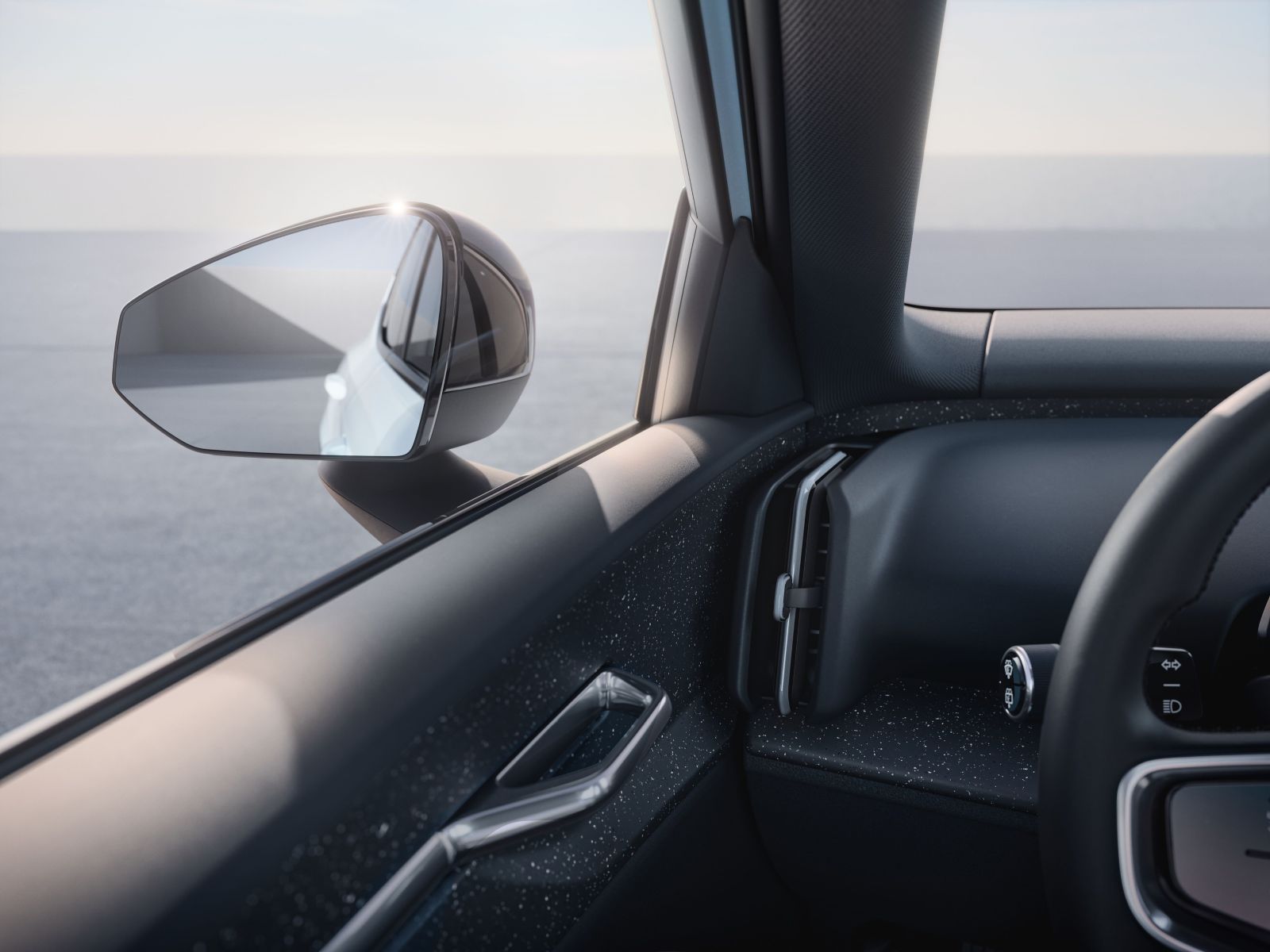

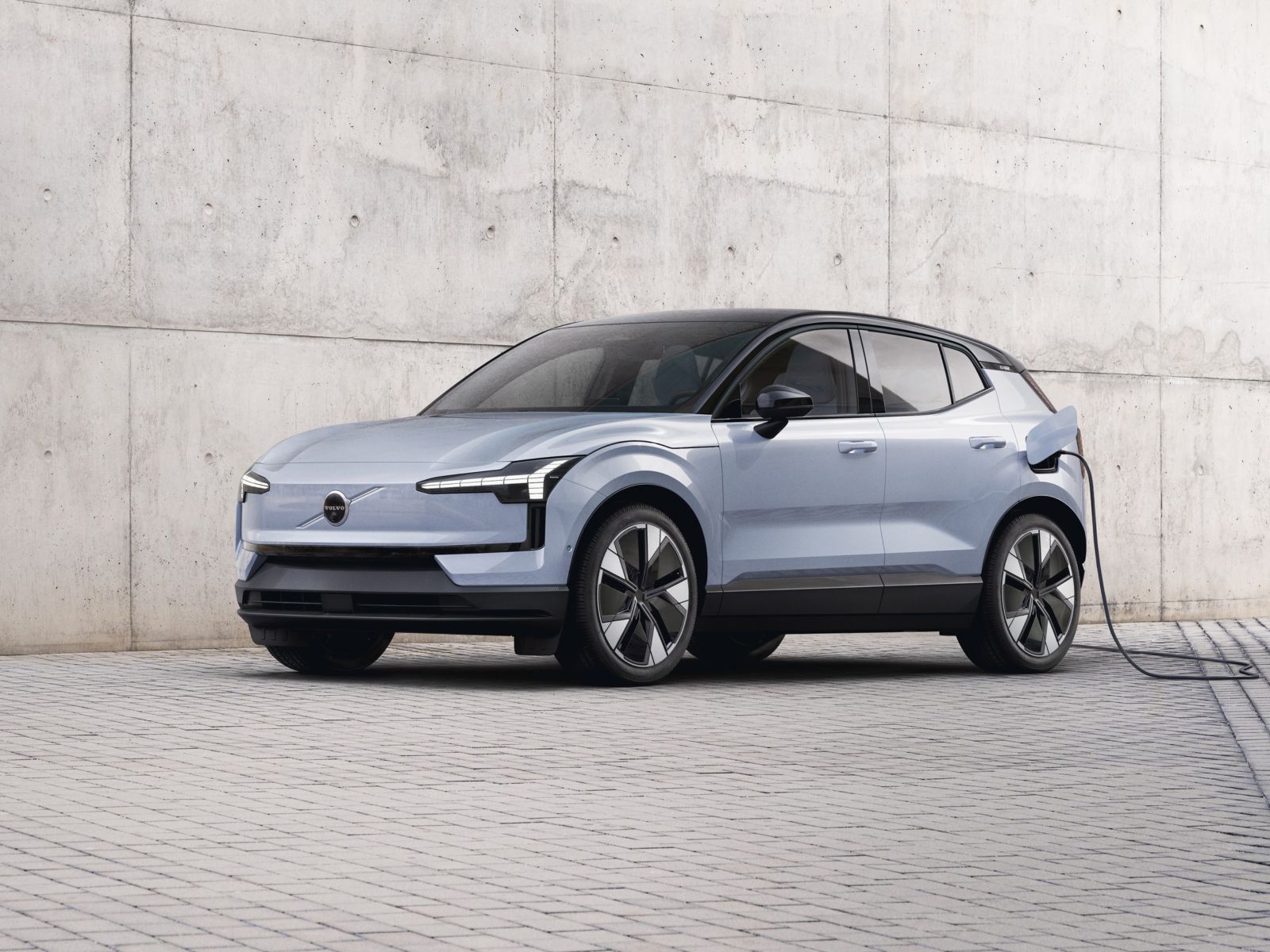

Volvo EX30 - Interior And Exterior Photos
The technical information on this page are used from official data provided by the car companies and figures measured by our editorial staff and/or other independent persons. For further details, please visit the manufacturer's website. If you think any of the information is wrong, please let us know.
